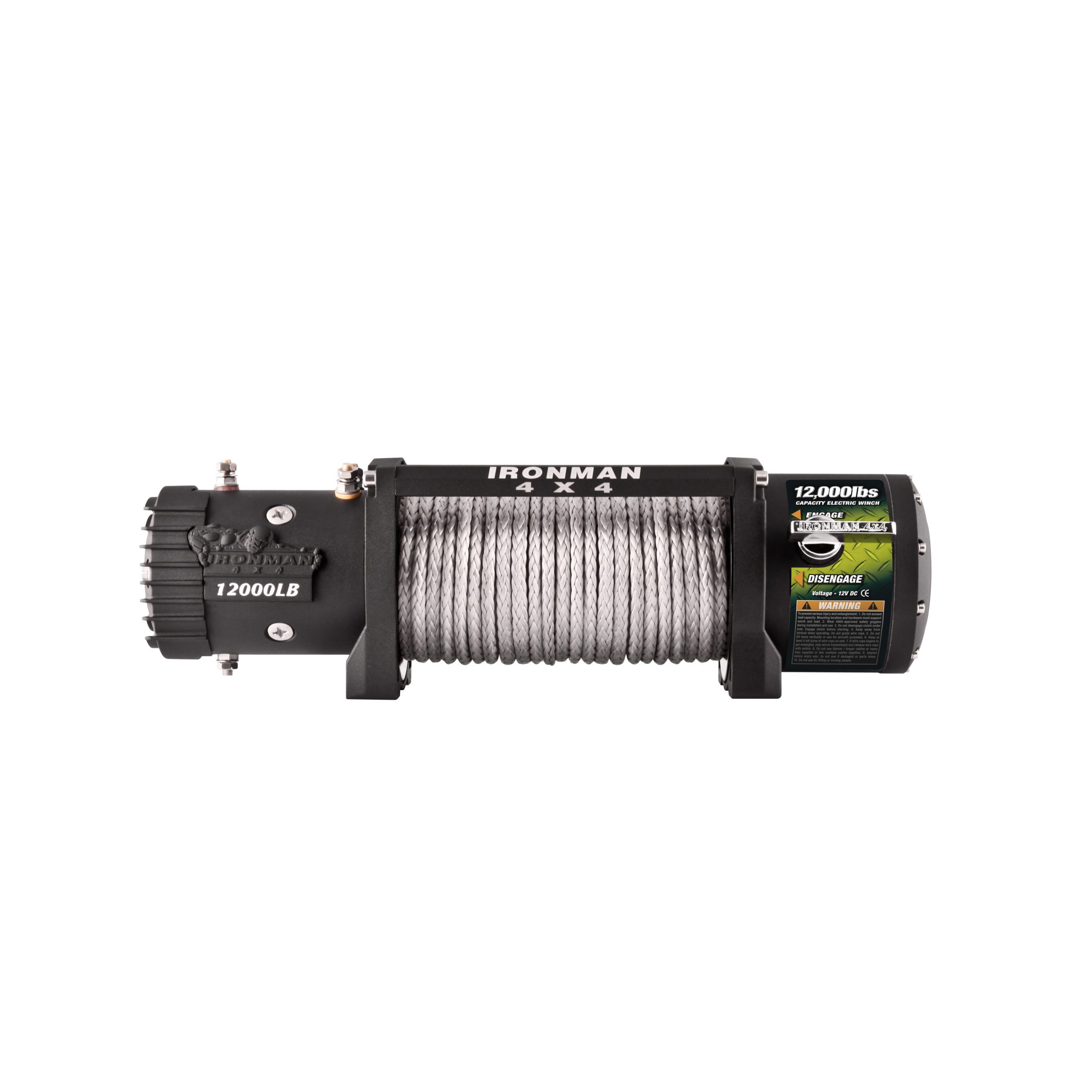

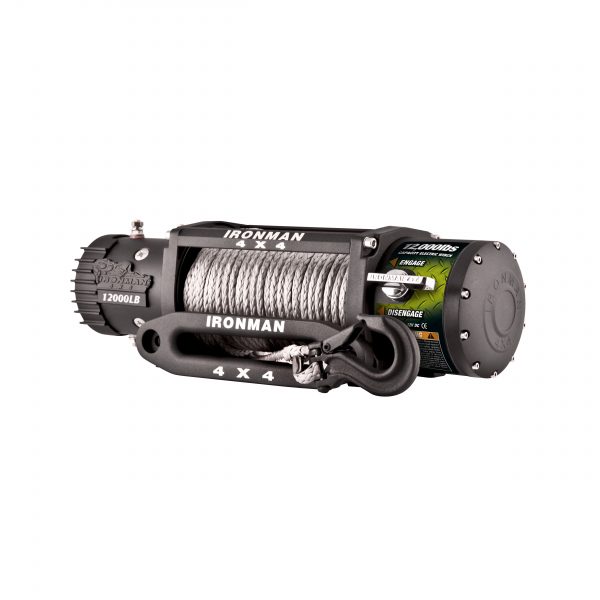

12,000LBS SYNTHETIC ROPE MONSTER WINCH
KWD 369.000
Winch Designed and developed right here at Ironman 4×4 Australia.
Out of stock
Description

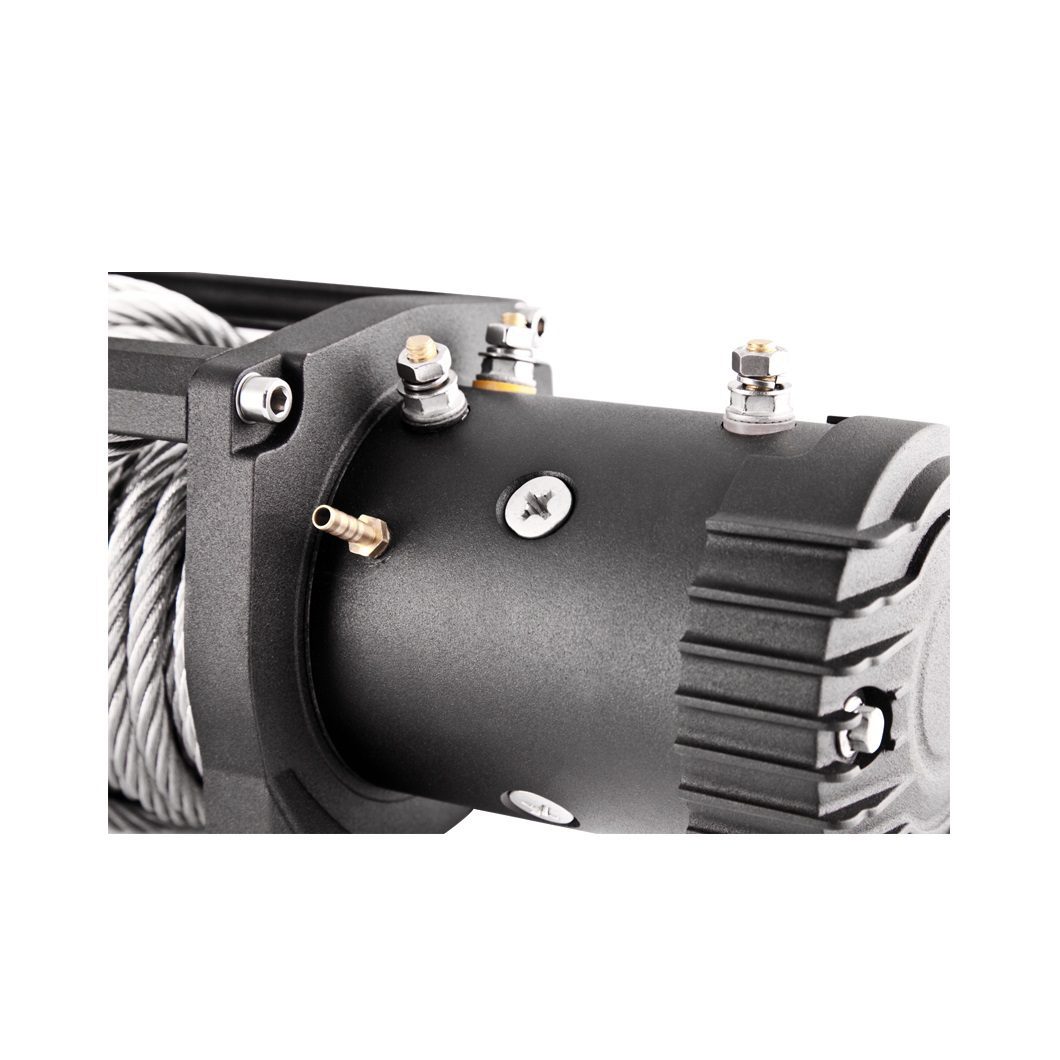

The Ironman 4×4 Monster Winch has evolved! Totally redesigned and upgraded, Ironman 4×4 Monster winches include stronger motors, heavy duty casings, synthetic ropes, competition style solenoid and a motor breather.
Designed and developed right here at Ironman 4×4 Australia, our latest Monster Winch range are a must have accessory for your four wheel drive!
SPECIFICATIONS
Series Woundtrue
Motor 6.4HP / 4.5KW
Power 12VDC
Weight 29kg

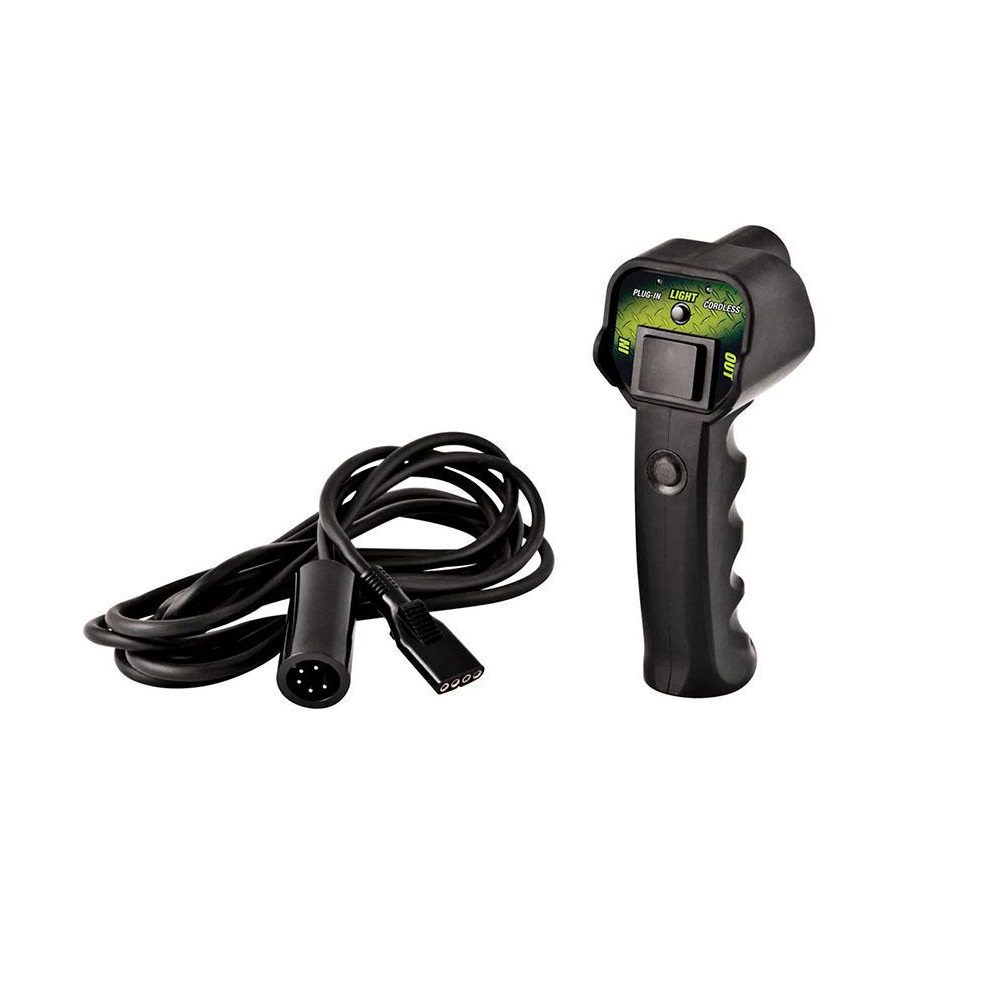

Wireless Remote Range 30.5m
Remote Lead Length 3.6m
Gear Train 3 Stage Planetary
Gear Reduction Ratio 265:1
Brake Automatic Camp Lock (In Drum)
Synthetic Rope Dimensions 28m x 9mm
Overall Dimensions 540mm (L) x 165mm (H) x 150mm (W)
Mounting Bolt Pattern 254mm x 114.3mm
Notes Minimum Battery for winching – 650CC
WARRANTY
5Years
Additional information
| Weight | 29.5 kg |
|---|---|
| Dimensions | 60 × 36 × 27 cm |
| Brand |
